Toolmex Tarnow TUJ-50M, Polamco Lathe

 Operating, Parts and Appendices Manuals

Operators manual has 49 pages on operations and 41 on parts diagrams

Technical Description

Specifications

Standard equipment

Special Equipment

Preparation for starting the lathe

Operations

Maintenance

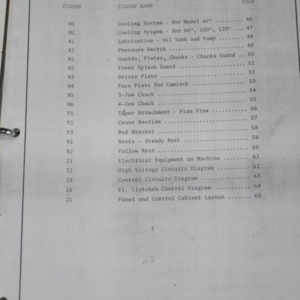

Parts Diagrams

24 Parts diagrams with some as pull outs

Charts on Threads and Feeds

(NOTE: For a more complete manual on parts diagrams,  60 TOTAL and electrical drawings, 5 TOTAL see our Service Manual on the TUJ-50M)

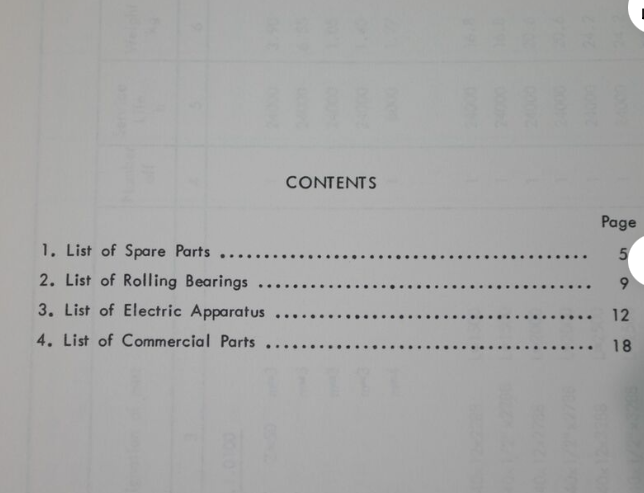

Spare parts manual has 18 pages

Listing of parts

Roller Bearing numbers used in the Lathe

List of Electrical components

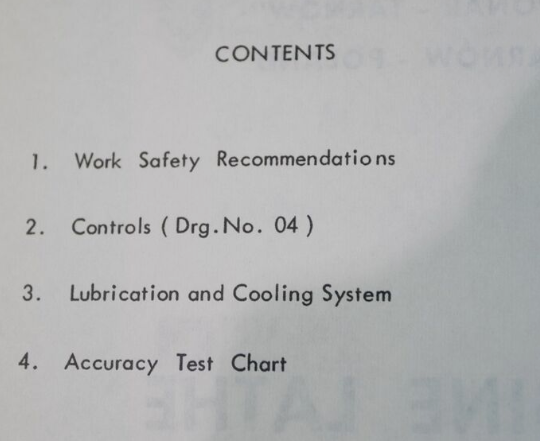

Appendices has 17 Pages

Safety Recommendations

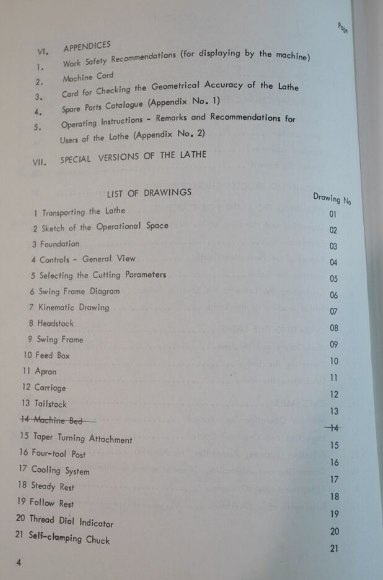

Detail Drawing and labeling on controls

Lubrication and Colling System

Accuracy test chart

TOTAL PAGES 125
